MAIN APPLICATION

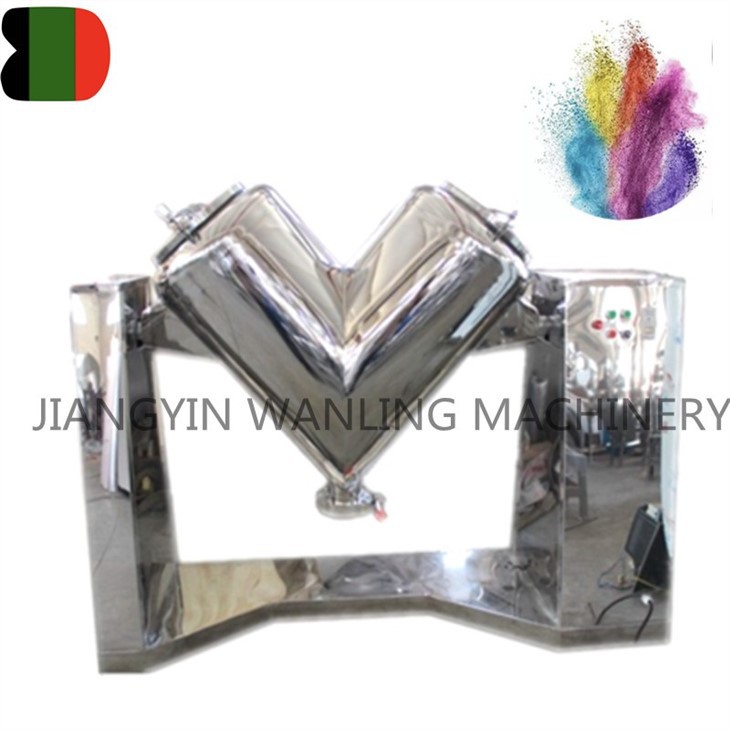

WLV v Type Mixer Machine is CE certified automatic machine, which is mainly used in pharmaceutical, chemical or food industry. It has safety bar, auto-positioning stop function and intensifier bar (agitator) is optional.
MACHINE DESCRIPTION
1) V mixer High mixing efficiency.
2) V mixer Free of dead corner.
3) V mixer even mixing.
4) V mixer Safty bar can be added.
5) V mixer Forced agitator can be added.
TECHNICAL PARAMETERS
|
Type |
WLV-200 |
WLV-300 |
WLV-500 |
WLV-1000 |
WLV-2000 |
WLV-3000 |
WLV-4000 |
||
|
Barrel Volume(m3) |
0.2 |
0.3 |
0.5 |
1.0 |
2.0 |
3 |
4 |
||
|
Capacity(kg/batch) |
40 |
60 |
100 |
200 |
400 |
600 |
800 |
||
|
Mixing time(min) |
3-8 |
6-10 |
|
||||||
|
Blending speed(r/min) |
12 |
12 |
12 |
10 |
10 |
8 |
8 |
||
|
Power（KW） |
1.1 |
1.1 |
2.2 |
4 |
7.5 |
11 |
15 |
||
|
Overall Size（L*W*H）(mm) |
2000*400*1600 |
2050*710*1700 |
2370*1000*1850 |
2900*1350*2450 |
3340*1650*2980 |
4690*2200*4000 |
4950*2200*4230 |
||
|
Weight(kg) |
290 |
300 |
550 |
850 |
2040 |
2500 |
2800 |
||
PRODUCT ADVANTAGES
V-type mixer machine is a kind of mixing equipment widely used in pharmaceutical, chemical, food, pesticide and other industries. Its main advantages and uses are as follows:
(1) The structure of the V-type mixer is simple, easy to operate, easy to clean and maintain.
(2) The mixing effect of the V-mixing device is good, the mixing time is short, and the mixing uniformity is high.
(3) The volume utilization rate of the V-type mixer device is high, which can meet the production needs of different batches.
(4) The material of the V-type mixer machine is made of high-quality stainless steel, which meets the requirements of GMP and can meet the production requirements of pharmaceutical, food and other industries.
