MAIN APPLICATION

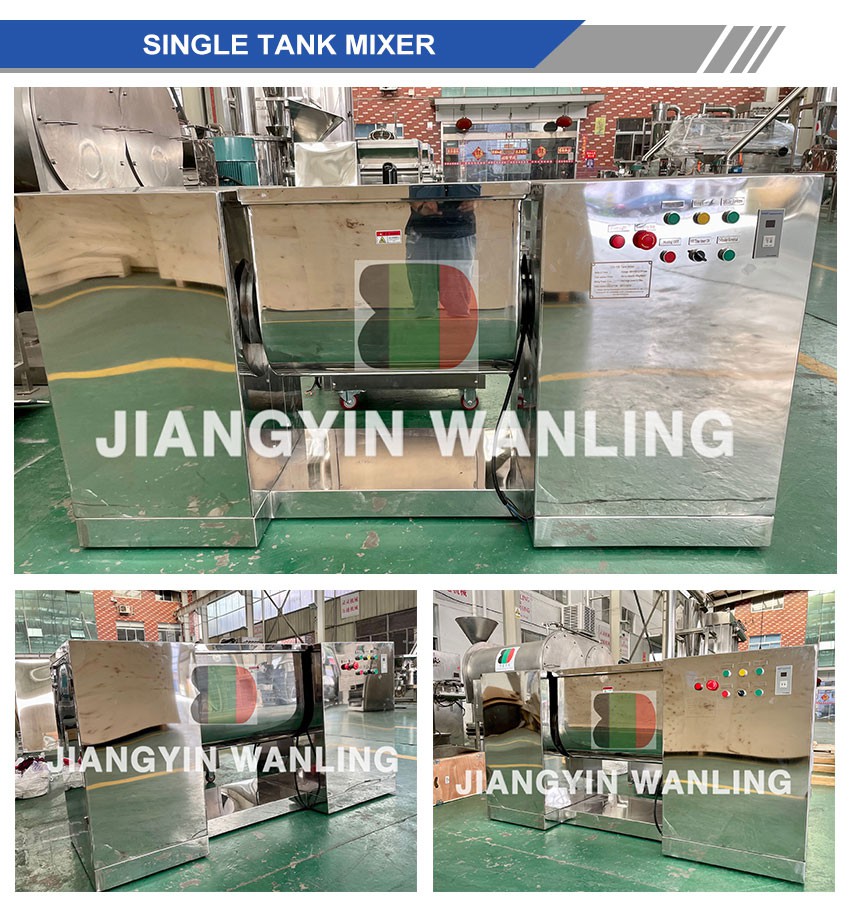

The dye blender machine through mechanical rotation to drive S type agitator, promote the materials reciprocating flipping, uniform mixing. When operating using electric control, can set up time of mixing, then automatically stop, so as to improve the mixing quality of each batch.
TECHNICAL PARAMETERS
|
Type |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Paddle shape |
S-style single paddle |
|||||||
|
Working volume(L) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Mixing speed(r/min) |
24 |
|||||||
|
Flip angle |
<105° |
|||||||
|
Mixing power(kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
7.5 |
11 |
|
Pouring motor power(kw) |
0.37 |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
|
Overall size (mm) |
1200×500×950 |
1400×580×1000 |
1800×600×1150 |
2000×650×1200 |
2200×700×1250 |
2280×750×1250 |
2350×800×1300 |
2400×850×1350 |
|
Weight(kg) |
280 |
350 |
410 |
450 |
520 |
580 |
|
|
