INTRODUCTION

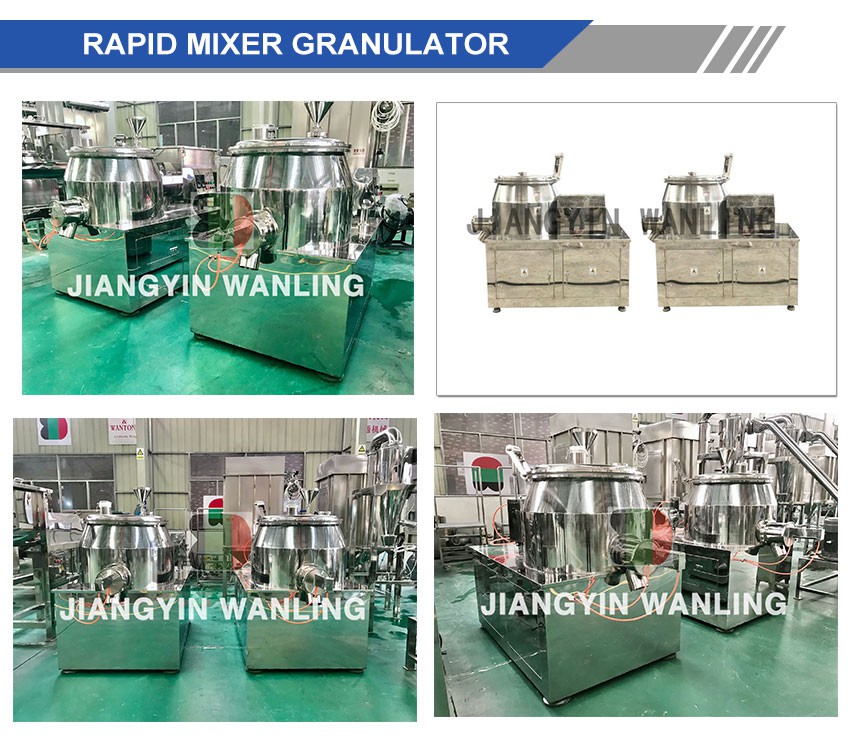

RMG granulator machines are versatile machines that can be used in a variety of industries for the production of granules. They offer high-speed mixing, uniform granule size, and easy cleaning and maintenance, making them a popular choice for manufacturers.
MAIN STRUCTURE
There is silicon-rubber airproof ring between the mixing barrel and the barrel cover; the extended parts of two transmission shaft are airproofed to prevent the polluted things into the barrel.
Design for security: When the barrel cover and the discharge exit are unfolded, the rapid granulator blending system and the cutter system can not be started up.
TECHNICAL PARAMETERS
|
Type |
WHL-50 |
WHL-150 |
WHL-200 |
WHL-250 |
WHL-300 |
WHL-400 |
|
Volume (L) |
50 |
150 |
200 |
250 |
300 |
400 |
|
Capacity (kg/batch) |
15 |
50 |
80 |
100 |
130 |
200 |
|
Blending speed (rpm) |
300/210 |
270/180 |
270/180 |
188/130 |
160/110 |
120/85 |
|
Blending power (KW) |
4/5.5 |
9/11 |
11/14 |
11/14 |
11/14 |
15/17 |
|
Cutting power (KW) |
1.5/2.2 |
2.4/3 |
3.3/4 |
3.3/4 |
4.5/5.5 |
6.5/8 |
|
Cutting speed (rpm) |
1440/2900 |
|||||
|
Working time (min) |
8-15 |
|||||
|
Particle size (mesh) |
20-80 |
|||||
PRODUCT FEATURES
Mix evenly: Making sure the coloring particles or pigment are evenly distributed;
Strong blending ability: Wetting the material quickly with 8-12% thickness starch slurry;
PRODUCT APPLICATIONS
1. Pharmaceutical industry: Rapid granulator machines are widely used in the pharmaceutical industry for the production of granules, which are used to make tablets and capsules.
2. Food industry: Rmg machines can be used in the food industry to mix and granulate ingredients for products such as energy bars and nutritional supplements.
3. Chemical industry: rapid mixer granulator RMG can be used in the chemical industry to mix and granulate powders for the production of fertilizers and other chemical products.
